ENERGYLITE INDUSTRIAL

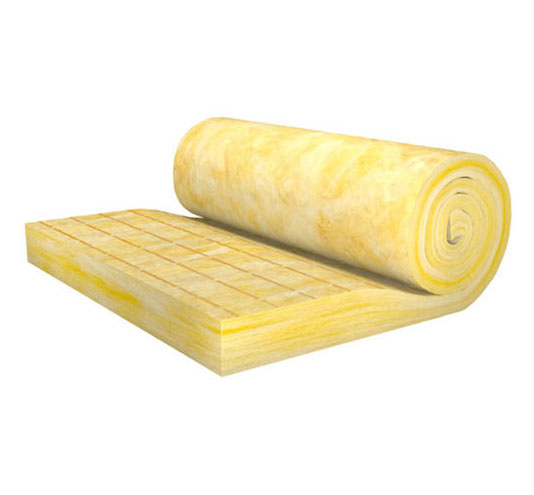

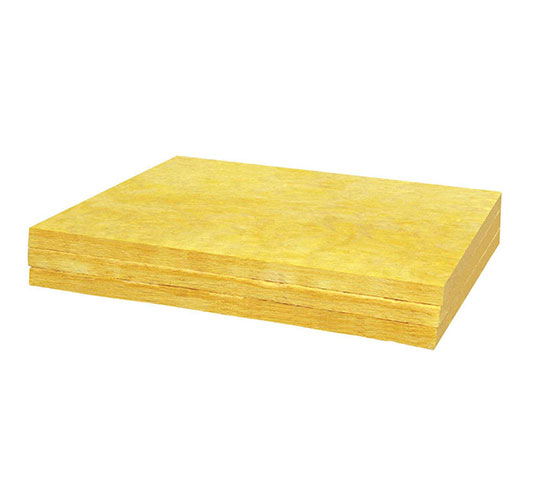

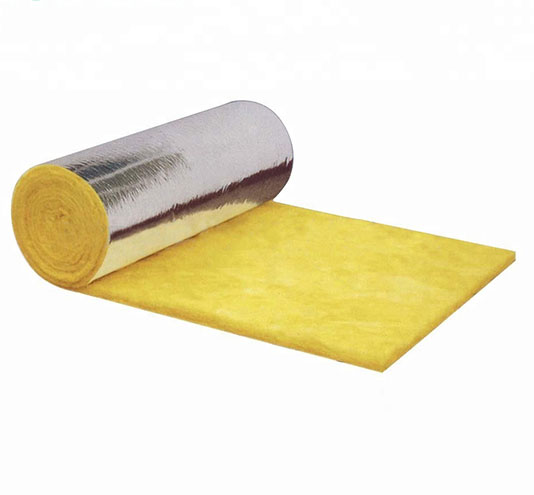

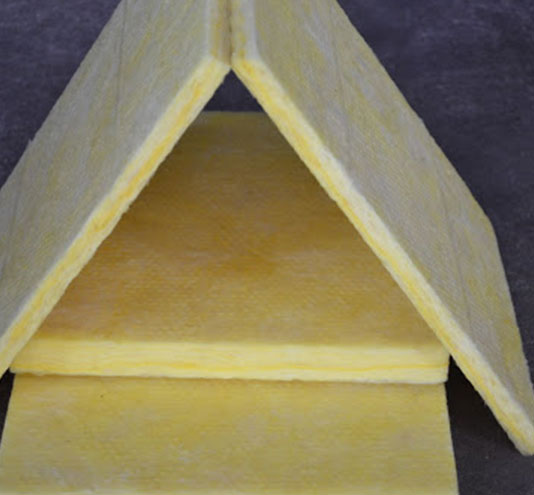

Energylite is manufactured from non-combustible glass wool, bonded mattress suitable for any application up to 450°C with an inert thermosetting resin to form a strong resilient product. It is odourless, inert and fully compatible with all standard building materials and components. Available in batts and blankets. A range of boards, felts, blankets and wire-backed mattress suitable for applications up to 450 degree °C.

Technical Data

  • A range of batts and blankets for thermal and acoustic control in commercial buildings
  • An industrial thermal insulation for applications up to 450°C
  • Conservation and control of heat in boilers, tanks, ductwork, ovens, etc
  • Acoustical correction in compressor houses and machine rooms
  • Conservation and control of heat in boilers, tanks, ductwork, ovens, etc
  • Acoustical correction in compressor houses and machine rooms

A range of boards, felts, blankets and wire-backed mattress suitable for any application up to 450°C

Long Life Savings Energylite contributes to indoor comfort and lifelong energy savings by reducing heat loss/gain due to the inherent thermal insulation properties. Non-corrosive, and it is safe to use on austenitic steels.
Acoustic Properties Excellent sound absorption properties
Odourless Does not smell
Fire Properties
  • All low binder Glass wool products are inherently non-combustible
  • Non-combustible – tested to SANS 10177 Part 5
  • Tested to ASTM E-84
  • Flame Spread Index: 10
  • Smoke Development Index: 5
Non-Combustible Non-combustible. Conforms to SABS 0177 Part V
Thermal Resistance High thermal resistance
Variety of Thicknesses Available in a variety of thicknesses and densities to suit application and hot face temperature
Fire Index Fire index conforms to SABS 0177 Part III (Class 1)
  • Significantly reduces heat gain and loss.
  • Odourless, inert and fully compatible with all standard building materials and components
  • Will not promote corrosion of steel, copper or aluminium
  • Will not sustain vermin
  • Will not breed or promote fungi, mould or bacteria
  • Non-hygroscopic
  • Dust settlement will not hamper the product’s performance Prevents condensation on cold surfaces protecting underlying materials

Energylite is manufactured according to ISO 14001 : 2004 Less material, less energy and less emitions.

  • Zero ozone depleting potential (ODP)
  • Zero global warming potential (GWP)

Energylite Metal Wall Application Specification

  • Energylite Insulation: (25/40/50/75/100)mm of density 24kg/m³
  • Energylite Insulation: (25/40/50)mm of density 47.5kg/m³
  • Energylite Insulation: (25/40/50)mm of density 64kg/m³
  • Energylite Insulation: (25)mm of density 80kg/m³

Performance criteria:

  • K-value: 0.036 W/mK for 24kg/m³ (ASTM C518)
  • K-value: 0.032 W/mK for 47.5kg/m³ and 64kg/m³ (ASTM C518)
  • Combustibility: Non-combustible (SANS 10177 Part 5)
  • Flame Spread Index: 10 (ASTM E-84)
  • Smoke Development Index: 5 (ASTM E-84)

Specification- Application to metal walls

  • Install (25/40/50/75/100)mm non-combustible Energylite glasswool insulation(blanket/batts) of density (24/47.5/64/80)kg/m³ (with woven black glasswool cloth liner).
  • Fit securely with closely butted joints, leaving no gaps. Energylite is impaled over welded pins and secured in place using proprietary washers or studs and nuts. Use 3 lines of fixings at maximum 600mm centres with 2 lines 45mm from the edge of the (blanket/batt) and 1 line at the centre of the batt.

Specification- Application to Masonry walls

  • Install (25/40/50/75/100)mm non-combustible Energylite glasswool insulation (blanket/batts) of density (24/47.5/64/80)kg/m³ (with woven black glasswool cloth liner).
  • Fit securely with closely butted joints, leaving no gaps. Energylite secured in place using proprietary screws, washers or studs and nuts.
  • Use 3 lines of fixings at maximum 600mm centres with 2 lines 45mm rom the edge of the (blanket/batt) and 1 line at the centre of the batt.

Specification- Application to ground floors

  • Install two layers of 25mm non-combustible Energylite glasswool insulation batts of density 64kg/m³.
  • Fit securely with closely butted joints, leaving no gaps and with all joints staggered.
  • Lay a damp proof membrane onto the concrete surface bed. Install Energylite batts onto the damp proof membrane.
  • Cover Energylite with waterproof building paper/polythene.
  • Install a concrete floating floor and finish as required.

Specification- Application to suspended Floors

  • Install 25mm non-combustible Energylite glasswool insulation batts of density 64kg/m³.
  • Fit securely with closely butted joints, leaving no gaps and with all joints staggered.
  • Install Energylite batts onto the concrete floors.
  • Cover Energylite with waterproof building paper/polythene.
  • Install a concrete floating floor and finish as required.
  • To be is read in conjunction with Glasswool Handling Instructions in the installation methodology.

Store product under cover and in dry conditions. Store flat. Handle with care, especially on the edges and corners, which can be damaged if subject to sharp or heavy impact. Do not apply excessive pressure, for example by standing or sitting on the product, as permanent damage may be caused.

Install (25/40/50/75/100)mm thick non-combustible, lightweight “Energylite” Glasswool insulation blanket/batts of (24/47.5/64)kg/m³ density for heat and/or acoustic control. Install in accordance with industry best practice.
