ALUBUBBLE

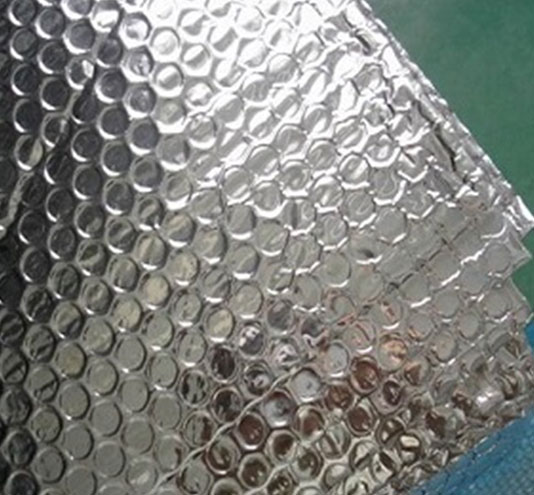

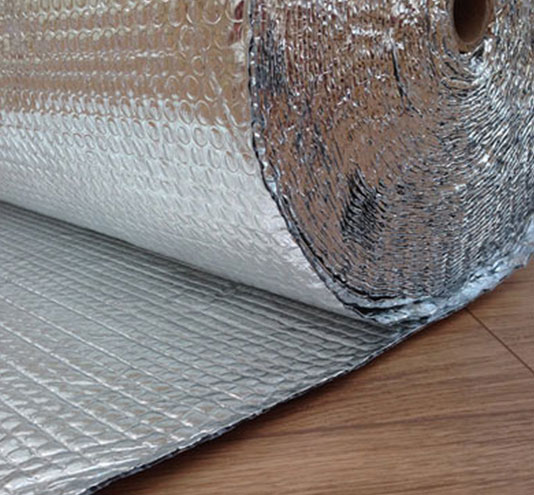

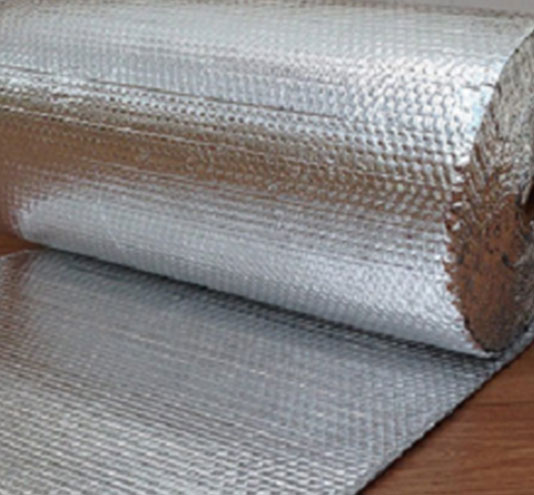

Alububble® is a superior performance radiant barrier material, simple to use and cost effective.

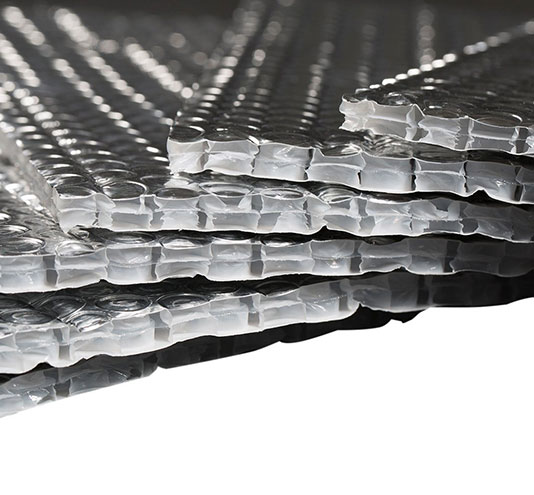

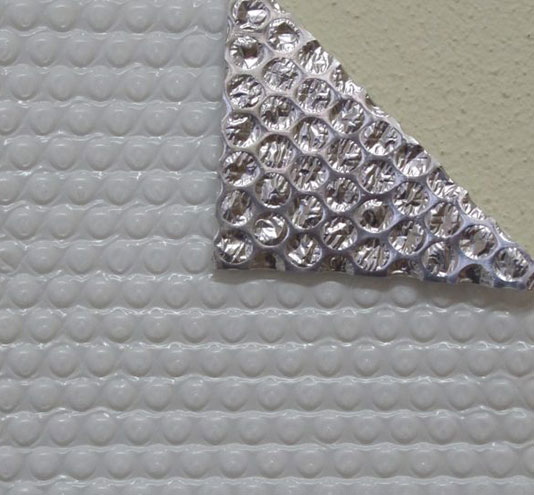

This product is manufactured using a modern sophisticated continuous laminating process which consists of a layer of low density Polyethylene air cells laminated on both sides with aluminium foil or alternatively on one side with a white polyethylene layer which provides an aesthetically pleasing finish to the underside.

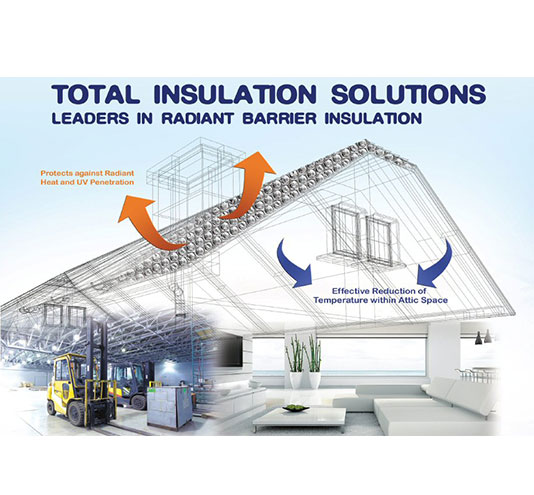

Alububble® uses the thermos principal of providing a reflective barrier along with adjacent air space to keep the building cool in summer and warm in winter.

Alububble® will not propagate fire and does not present a fire hazard when installed in a building.



Technical Data

Recommended for warehouse and factory over purlin application.

Tested to SANS 428 and awarded a B/B1/2/H (USP) (No Sprinklers).

All products are manufactured according to ISO 9001:2008 Quality Management System.

A leaking flat Roof could cause condensation and corrosion to occur which may damage the product and will negatively affect its thermal properties.

To ensure that ALUBUBBLE® remains in pristine condition, the rolls must be transported in a suitable, fully enclosed truck. They should also be stored under cover to protect them from direct sunlight and rain. Rolls should be stacked on their sides. Insulpro CC cannot accept any claim for replacement for material if the above instructions are not adhered to.

  • Does not crack – UV protected
  • Does not discolour
  • Does not delaminate
  • Non Toxic
  • Non Carcinogenic.
  • Does not attract rodents.
  • Has no fibres
  • Easy to install – No safety equipment needed during installation.
  • Reduces Dust penetration into the roof space.
  • Not static

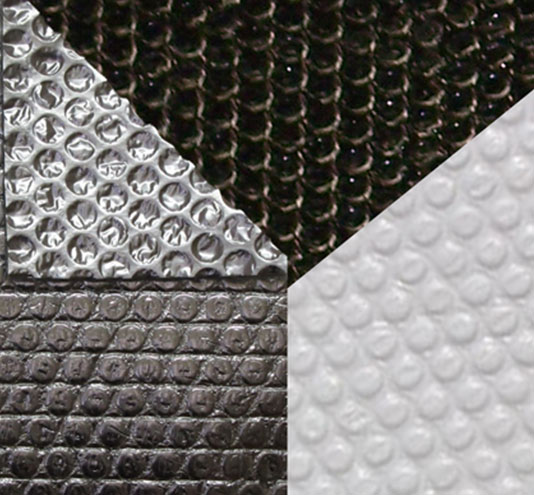

  • Various Colours Available

4mm Laminate 7 UM Aluminium Foil, bonded by LDPE to a 10mm LDPE bubble with a white LDPE backing.

Class D (Reflective foil laminate, unreinforced one surface reflective).

Form Roll
Length, mm >40 000
Width, mm 1250
Mass per unit area g/m² 280
Resistance to dry Delamination at evelvated ambient temperature No Delamination
Resistance to:
A) Corrosion and
B) Wet Delamination at elevated ambient temperature
No Corrosion
No Delamination
Shrinkage
Machine Direction
Cross Machine Direction
<1.5
<1.5
Emissivity <0.05
Water vapour permeance, g/(s.MN) <0.002
Tensile Breaking Strength
Machine Direction, KN/m of width
Cross Machine Direction, KN/m of width
2.6
1.9
System Thermal Resistance, (m²K)/W (with two 25mm air gaps – heat flow down)
White side facing hot plate
Foil side facing hot plate
0.96
0.85
Bursting Strength, kPa 285
Puncture Resistance, mJ 10 300
Edge Tear Resustance
Machine Direction, N
Cross Machine Direction Direction, N
121
90
